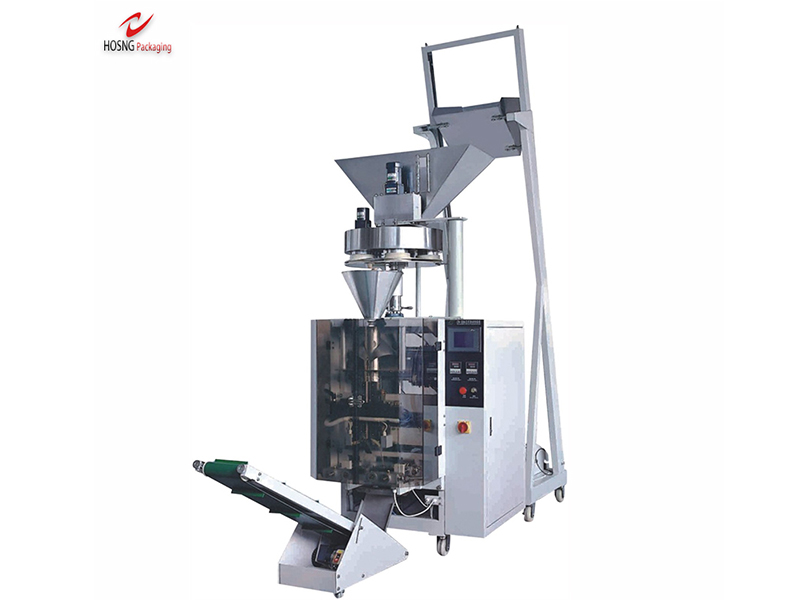

HS-420W Granule Packaging Machine
HS-420W Granule Packaging Machine
HS-420W Granule Packaging Machine
Pillow-type bag, Standing bag, punching device,Link-bag device,bean packing machine
We support complete sets or accessories for sale, welcome inquiry
Pillow-type bag, Standing bag, punching device,Link-bag device,bean packing machine
We support complete sets or accessories for sale, welcome inquiry
| Technical Parameter | ||||
| Model | 520W | 420W | 380W | 320W |
| Packing speed | 10-70bag/min | 10-80 bag/min | ||
| Bag size | (W)90-250mm*(L)80-300mm | (W)80-200mm*(L)50-300mm | (W)60-180mm*(L)50-200mm | (W)60-150mm*(L)50-200mm |
| Range of measuring | Max 3500ml | Max 2000ml | Max 700ml | Max 700ml |
| The maximum width of packing film | 520mm | 420mm | 380mm | 320mm |
| Thickness of film | 0.04-0.10 mm | 0.04-0.08 mm | ||
| Air consumption | 0.4 m3/min 0.6MPa | 0.3 m3/min 0.6MPa | 0.4 m3/min 0.6MPa | |
| Main power/voltage | 4.5kW/220V 50-60Hz | 4.0kW/220V 50-60Hz | 4.0kW/220V 50-60Hz | 3.7kW/220V 50-60Hz |
| Dimension | (L)1896*(W)1182*(W)2430mm | (L)1720*(W)1030*(W)2254mm | (L)1300*(W)820*(W)2300mm | (L)1100*(W)820*(W)1940mm |
| The weight of switchboard | 500Kg | 450Kg | 450Kg | 350Kg |

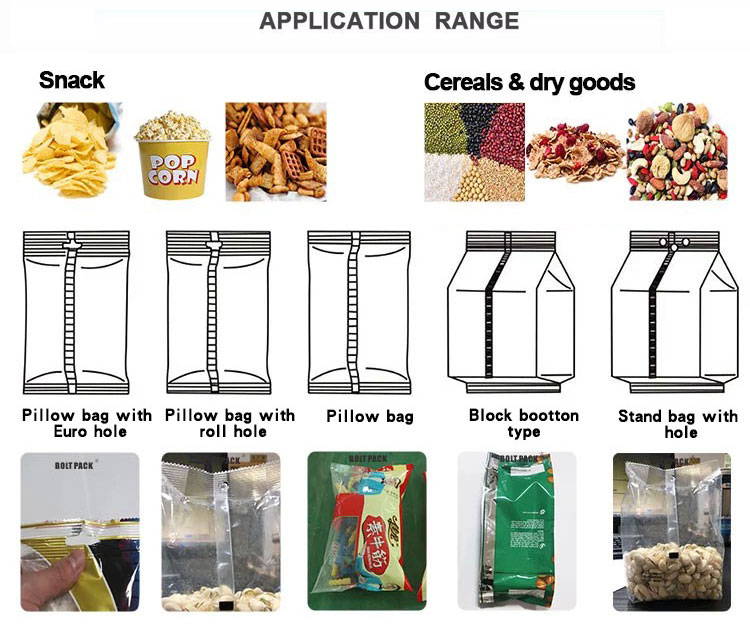

| Bag making mode | Pillow-type bag,standing bag, punch hole and connet | |||
| Film material | POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET | |||
