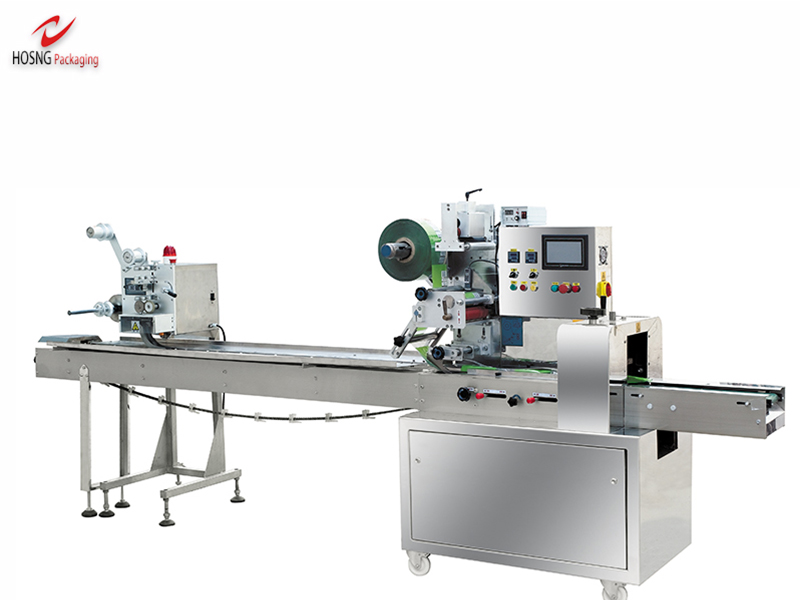

HS250 Rice Pillow Type Packaging Machine
HS250 Rice Pillow Type Packaging Machine
HS250 Rice Pillow Type Packaging Machine

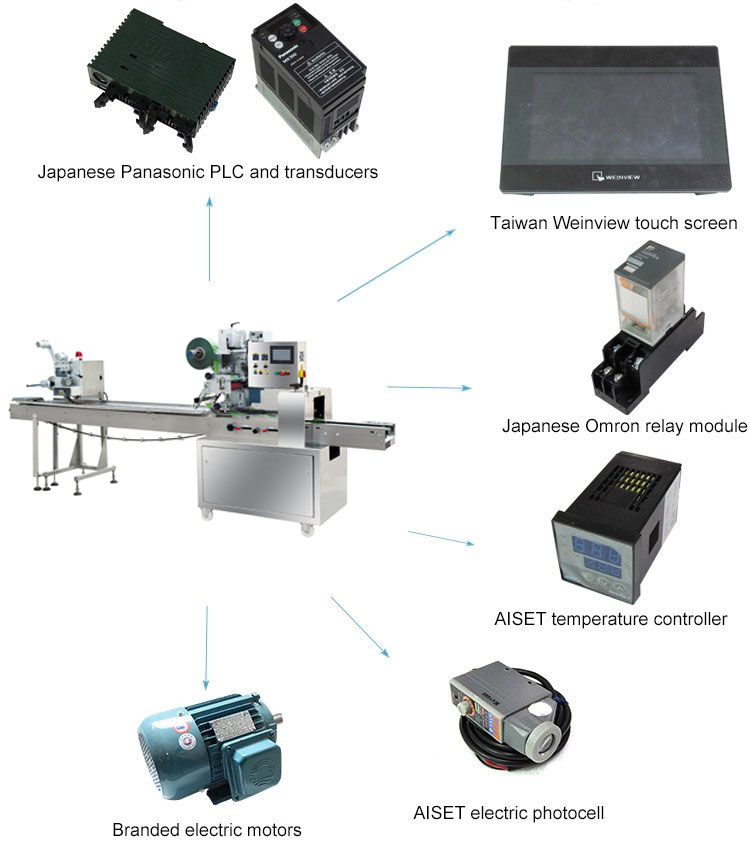

The transducer also with the machine from Panasonic brand to keep machine work more stable.
1. Main performance and structural features
* It’s convenient in bag length control with advanced dual frequency conversion design;
* Reasonable complete machine design and stable performance; simple in operation with PLC full computerization;
* Precise sealing and cutting with high precision photoelectric tracking system;
* Positioned stop function without sticking to the reamer and wasting the roll film
We support complete sets or accessories for sale, welcome inquiry
The transducer also with the machine from Panasonic brand to keep machine work more stable.
1. Main performance and structural features
* It’s convenient in bag length control with advanced dual frequency conversion design;
* Reasonable complete machine design and stable performance; simple in operation with PLC full computerization;
* Precise sealing and cutting with high precision photoelectric tracking system;
* Positioned stop function without sticking to the reamer and wasting the roll film
We support complete sets or accessories for sale, welcome inquiry
| HS-250/350 Pasta Packaging Machine | HS-450/600 | |||||||||
| Item | HS-250 | HS-250A | HS-350 | HS-350A | HS-350X | HS-350XA | HS-450H | HS-600H | HS-450W | |
| Film width | 60-250MM | 60-350MM | MAX.350MM | MAX.450MM | MAX.600MM | MAX.450MM | ||||
| bag-making length | 65-190MM/120-280MM | 90-220MM/140-330MM | 65-190MM/120-280MM | 90-220MM/140-330MM | 65-190MM/120-280MM | 90-220MM/140-330MM | 120-600MM | 120-600MM | 120-450MM | |
| bag-making width | 30-110MM | 50-160MM | 30-160MM | 50-180MM | 50-210MM | 50-160MM | ||||
| prodution height | Max.40mm | Max.60mm | Max.40mm | Max.60mm | Max.40mm | Max.60mm | 10-80mm | 10-80mm | 10-100mm | |
| packing material | OPP/PE/PVC,OPP/CPP,KOP/CPP,ALU-FOIL | OPP/PE/PVC,OPP/CPP,KOP/CPP,ALU-FOIL | OPP/PE/PVC,OPP/CPP,KOP/CPP,ALU-FOIL | OPP/PE/PVC,OPP/CPP,KOP/CPP,ALU-FOIL | OPP/PE/PVC,OPP/CPP,KOP/CPP,ALU-FOIL | |||||
| thickness of film | 0.03-0.07MM | 0.03-0.07MM | 0.03-0.07MM | 0.03-0.07MM | 0.03-0.07MM | |||||
| packaging speed | 40-230bags/min | 40-230bags/min | 40-230bags/min | 20-80bags/min | 20-80bags/min | |||||
| power specification | 3.4kw/220,50/60hz | 3.4kw/220,50/60hz | 3.4kw/220,50/60hz | 4.2kw/220,50/60hz | 4.6kw/220,50/60hz | 4.2kw/220,50/60hz | ||||
| machine dimension | (L)3770*(W)640*(H)1350mm | (L)4020*(W)770*(H)1450mm | (L)4020*(W)770*(H)1450mm | (L)4380*(W)870*(H)1500mm | (L)4380*(W)870*(H)1500mm | (L)4380*(W)870*(H)1500mm | ||||
| gross weight | 500G | 600G | 600G | 800G | 900G | 800G | ||||
| optional device | printer，Air-filling device,feeder，Tidier，alcohol spray device | printer，Air-filling device,feeder，Tidier，alcohol spray device | printer，Air-filling device,feeder，Tidier，alcohol spray device | gusset bag device | gusset bag device | |||||
